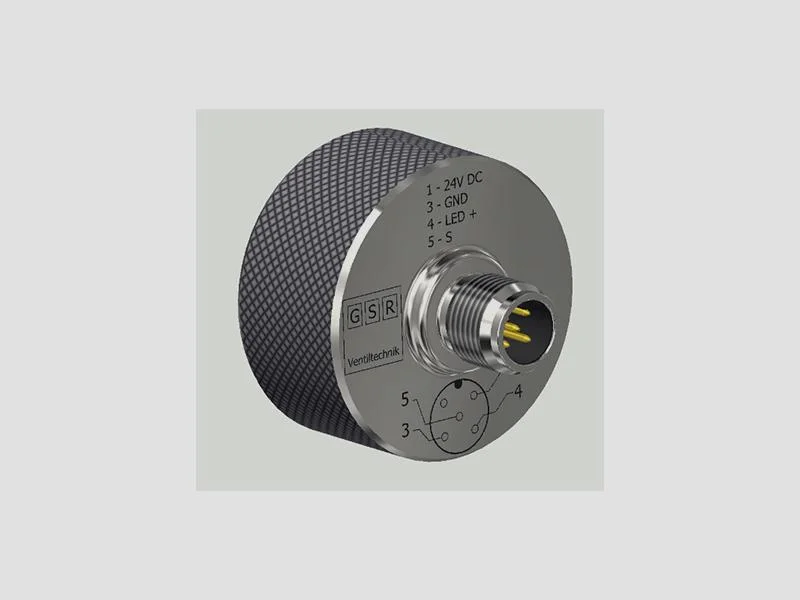

The Technical Data Sheet Position Indicator represents a sophisticated contactless sensing solution specifically engineered for GSR solenoid valve systems. This device delivers pre...

The Technical Data Sheet Position Indicator represents a sophisticated contactless sensing solution specifically engineered for GSR solenoid valve systems. This device delivers precise end-position detection through both visual LED indication and electrical signal feedback, ensuring operators and control systems receive immediate, accurate status information. Constructed with a durable stainless-steel housing and achieving IP65 protection, it withstands demanding industrial environments while maintaining reliable performance. Operating within a 12-24V DC range with -20%/+20% voltage tolerance and consuming only 30mA, it includes essential protections against reverse polarity and overvoltage conditions. The M12 x 1 electrical connection provides secure interfacing, while its design allows straightforward retrofitting to existing GSR .012 and .032 solenoid systems without requiring system modifications.

This position indicator finds essential application across multiple industrial sectors where valve position verification is critical for safety, efficiency, and process integrity. In manufacturing automation, it ensures proper sequencing of pneumatic actuators and prevents machinery jams or incomplete cycles. Process industries including chemical, pharmaceutical, and food production utilize these indicators to monitor control valves regulating fluid flows, temperatures, and pressures. Water and wastewater treatment facilities implement them for reliable valve status feedback in filtration, dosing, and distribution systems. The device's compatibility with both normally closed and normally open valve configurations makes it versatile for various control philosophies, while its robust construction suits applications in harsh environments like mining, oil and gas, and heavy machinery.

The business value of this position indicator lies in its ability to enhance system reliability, reduce downtime, and simplify maintenance procedures. By providing immediate visual and electrical confirmation of valve positions, it enables faster troubleshooting and prevents costly errors caused by undetected valve malfunctions. The easy retrofitting capability means existing systems can be upgraded without expensive redesigns or extended shutdowns, protecting your investment in current infrastructure. The device's IP65 rating and wide temperature tolerance ensure long-term performance even in challenging conditions, reducing replacement frequency and maintenance costs. Its low power consumption and integrated protections contribute to overall system energy efficiency and component longevity, while the standardized M12 connection simplifies integration and future expansions.

Key Features:
- Contactless position sensing technology for GSR solenoid valves with no mechanical wear.
- Integrated LED provides clear visual status indication for immediate operator feedback.
- IP65-rated stainless steel housing ensures protection against dust and water ingress.
- Wide operating voltage range of 12-24V DC with -20%/+20% tolerance for flexible integration.
- Reverse polarity and overvoltage protection safeguards against installation errors and power surges.

Benefits:
- Enhances system reliability by providing accurate end-position feedback for critical valves.
- Reduces maintenance costs through contactless operation that eliminates mechanical wear components.
- Simplifies troubleshooting with immediate visual and electrical status indications.
- Enables easy retrofitting to existing GSR solenoid systems without requiring system modifications.
- Withstands harsh industrial environments thanks to robust construction and IP65 protection rating.
